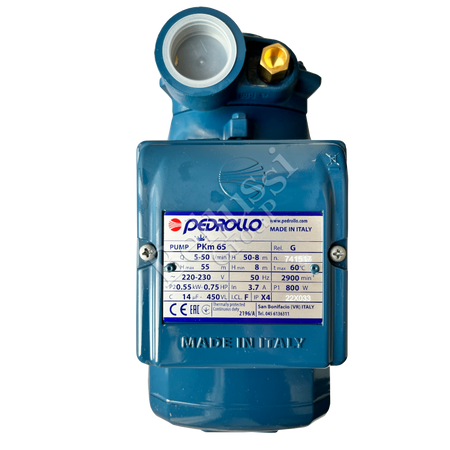

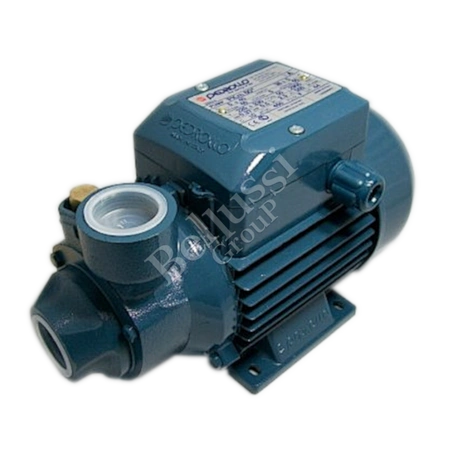

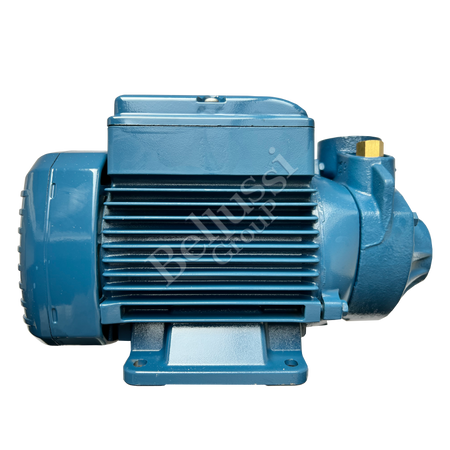

Electropump PKM 60

The Pedrollo PKm 65 is a single-phase peripheral pump designed for supplying clean water in domestic, agricultural, and technical installations. The pump features a compact design, high operating pressure, and stable performance, making it ideal for household water systems and pressure-boosting applications.

Electropump PKM 65 with connectors is successfully used in steam generators of type Comel FB/F and ironing tables Comel FR/F, MP/F, MP/F/PV and others.

The construction, based on a cast iron body and brass impeller, ensures long-lasting durability. The motor, rated at 0.55 kW and powered by 230V, features class F insulation and IPX4 protection, guaranteeing safe operation under typical installation conditions. The pump is intended exclusively for pumping water free of sand or abrasive particles.

This model can be used in booster sets, small irrigation systems, and technical installations responsible for water circulation, such as cooling, rinsing, or washing devices. To ensure reliable operation, the pump should be installed in a dry, ventilated location, protected from weather conditions.

Technical specifications:

• Maximum flow rate: 50 l/min
• Maximum head: up to 50 m
• Power: 0.55 kW
• Supply voltage: 1~230V
• Maximum ambient temperature: +40°C
• Maximum water temperature: +60°C
• Operating pressure: up to 6 bar
• Suction height: up to 8 m
• Connections: 1"
• Insulation class: F
• Protection degree: IPX4

Materials:

• Pump body: cast iron
• Motor bracket: aluminum with brass components
• Impeller: brass
• Motor shaft: stainless steel 1.4104
• Mechanical seal: ceramic / graphite / NBR

Pedrollo PKm 65 is one of the most popular peripheral pump models, valued for its durability, solid specifications, and wide range of applications in water supply systems and technical installations.
