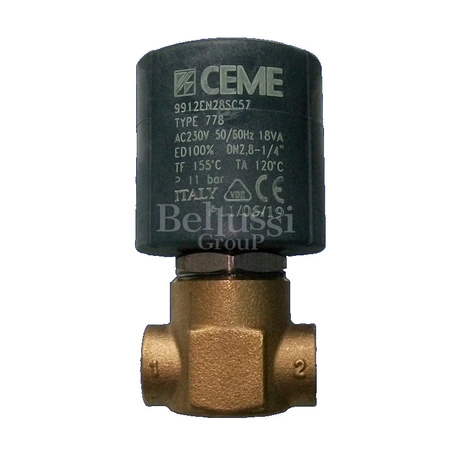

CEME 9912 NC 1/4" Water Flow Solenoid Valve 230V for Steam Generators and Ironing Tables
CEME 9912 NC 1/4" Water Flow Solenoid Valve 230V for Steam Generators and Ironing Tables
- Flow solenoid valve 9912 1/4-1/4 DN3 230V/50Hz, designed for Comel Pratika CMP, FB/F steam generators and FR/F, MP/F, MP/F/PV, MP/F/T ironing tables and other steam equipment.
9912 NC 1/4" Flow Solenoid Valve for Steam Generators and Ironing Tables
Technical specifications:
Valve type: normally closed, direct-acting
Internal thread: G 1/4
Flow diameter: 2.8 mm
Minimum pressure difference: 0 bar
Maximum pressure difference: 6 bar AC, 2 bar DC
Plunger seal: EPDM
Body material: brass
Maximum medium temperature: 155 °C
Maximum ambient temperature: 80 °C
Media: water, air, steam
The valve is supplied with plug and 230V/50Hz coil. If a coil with a different voltage or frequency is required, please specify in the order notes.
Additional voltage options:
DC: 12V, 24V, 48V, 110V
AC: 12V, 24V, 48V, 110V, 230V, 400V
Frequency: 50Hz, 60Hz
Application: ideal for steam generators and ironing tables, ensures precise control of water, air, and steam flow and reliable, long-lasting operation of the device.
